Application Scenarios
Corrugated steel water storage tanks are ideal for:

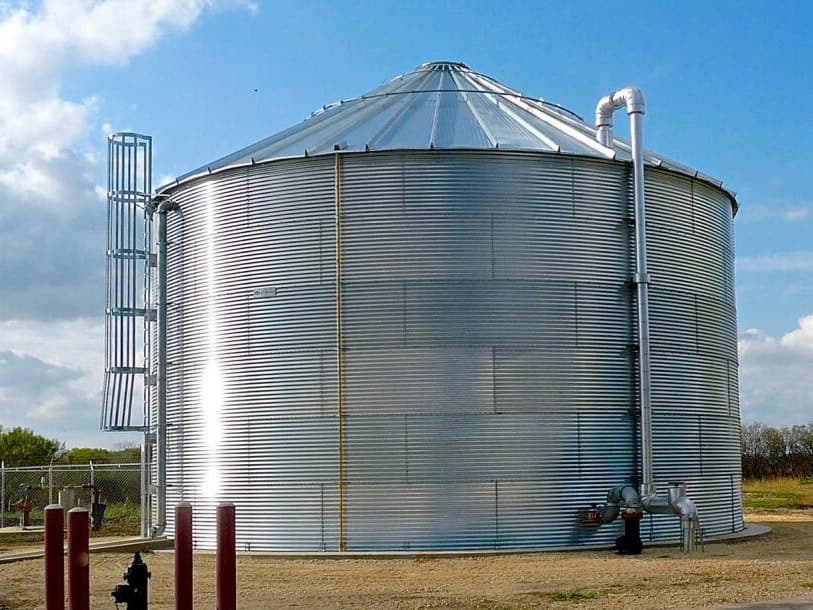

- Municipal Water Systems: Potable water storage (NSF/ANSI 61 certified)
- Fire Protection: AWWA D103-09 compliant designs with 2-hour fire rating

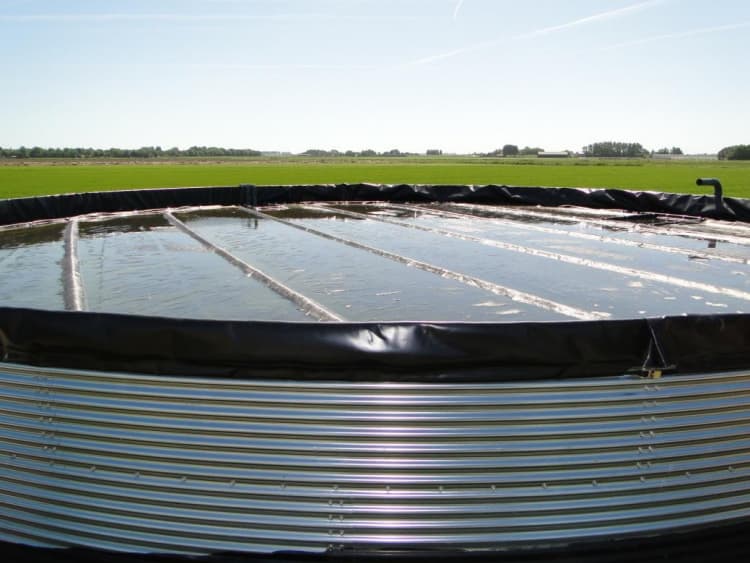

- Agriculture: Irrigation reservoirs (30% cost savings vs. concrete)
- Mining: Acid mine drainage containment (3LPE-lined models)
Key Features & Advantages
Structural Superiority

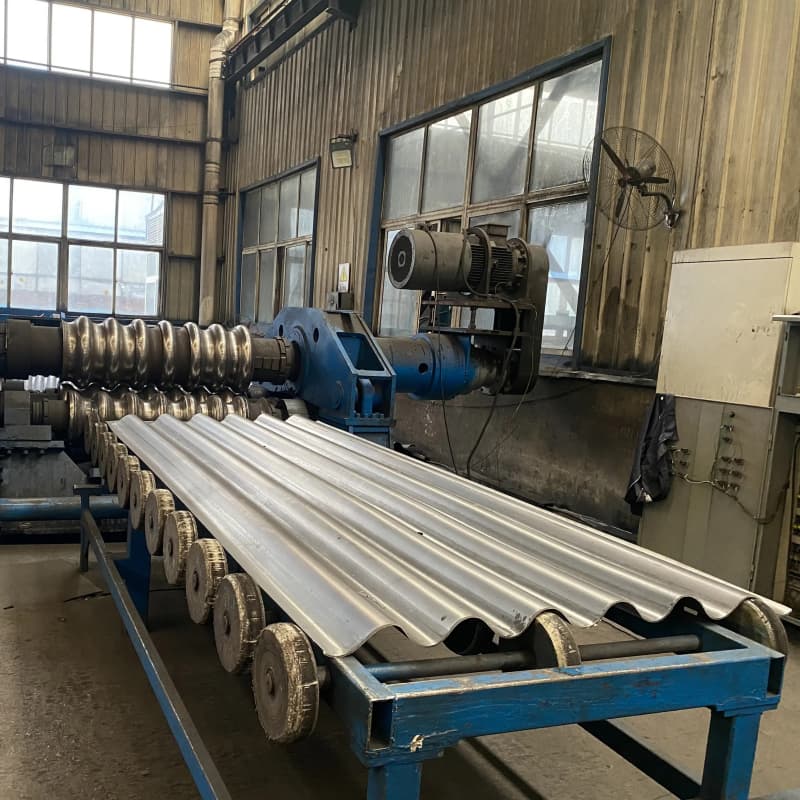

- Corrugated Panels: 20% higher stiffness than flat steel (EN 1993-4-2)
- Seismic Performance: Zone 4 certification per IBC 2018
Material Science
- Hot-Dip Galvanizing: 150g/m² zinc coating (ASTM A123)
- Optional Liners: Epoxy/polyurethane for chemical resistance
Engineering Solutions
Problem-Solving Designs:
- Frost Protection: Insulated roofs (-40°C operation)

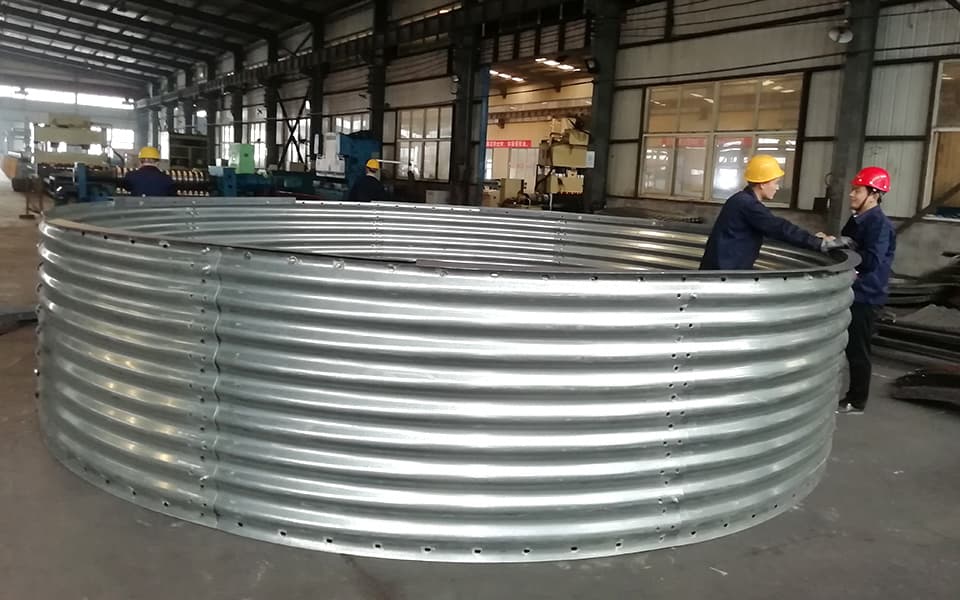

- Modular Expansion: Add rings to increase capacity post-installation
Technical Parameters
SpecificationRangeStandardDiameter3m–30mAWWA D103Capacity50–15,000m³ISO 28765Panel Thickness1.2–4.0mmASTM A796
Global Case Studies
- Dubai Municipality: 12,000m³ potable water tanks (50-year design life)
- Chilean Copper Mine: 8,000m³ leaching solution tanks with 3LPE lining
FAQs
Q: How does maintenance compare to concrete tanks?
A: Bolted panel tanks require only external inspections every 5 years vs. internal scaffolding for concrete.
Why Choose Our Solution?
- BIM Integration: Full Revit models provided
- Certifications: Lloyds Register, NSF, AWWA
- Speed: 500m³/day installation rate
