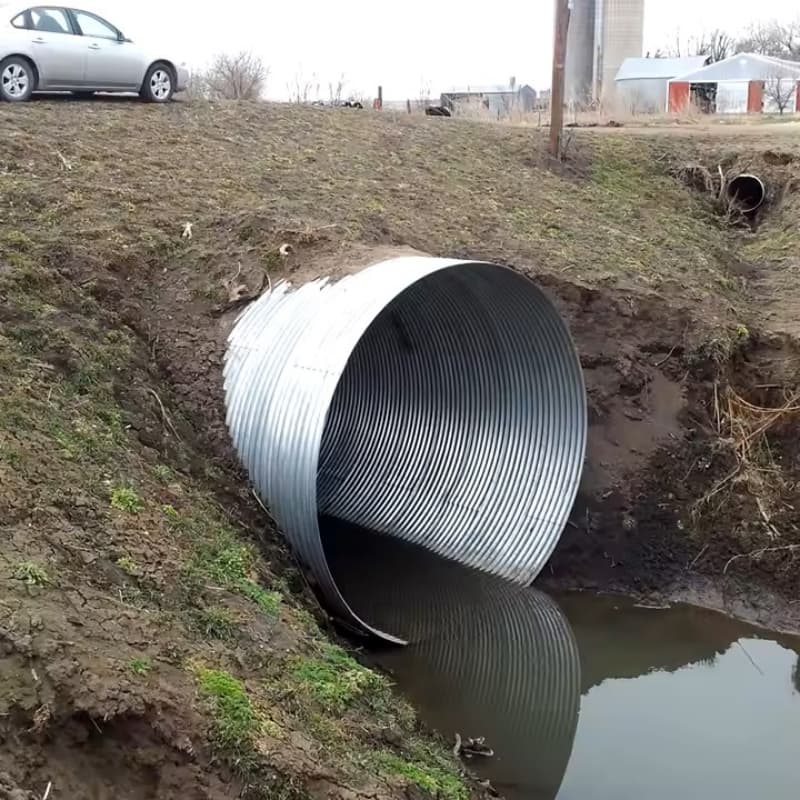

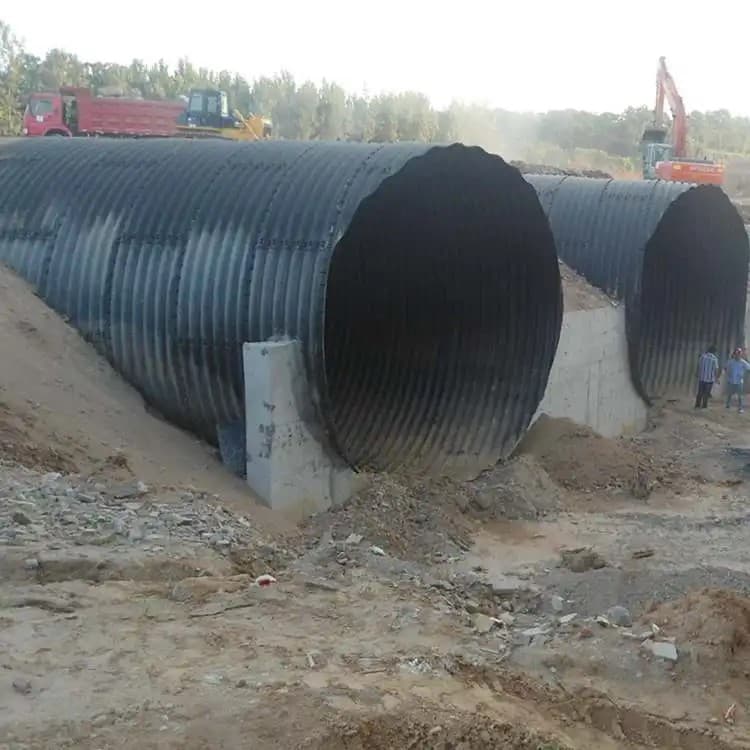

High-Performance Corrugated Metal Pipes for Culverts and Sewers
(Also known as Structural Metal Culvert Systems)
Engineering Solutions
Our corrugated metal pipes for culverts and sewers deliver:
- Hydraulic Efficiency: 25-40% greater flow capacity than concrete alternatives
- Structural Resilience: Field-proven in extreme conditions (-40°C to +60°C)
- Modular Design: Bolt-together assembly reduces installation time by 35%
Circular
Elliptical
Pipe arch
High profile pipe arch

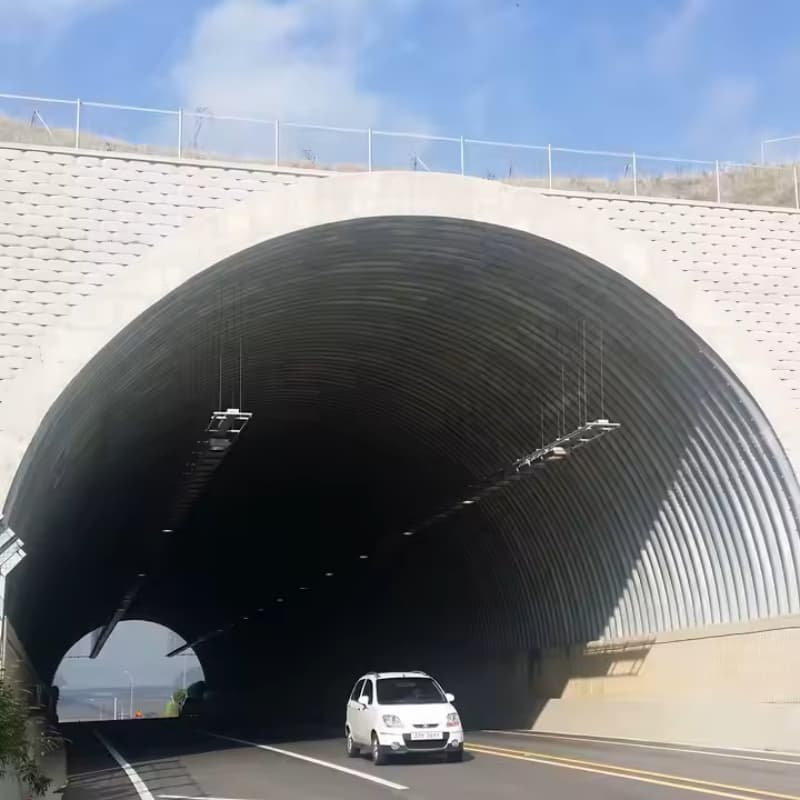

Arch
Low profile arch
High profile arch
High profile ellipse
| Assembly Corrugated Steel Pipe Normal Type And Technical Parameter List | |||||
Steel Pipe Modle | Pipe Dia | Wave Pitch | Wave Height | Thickness | Galvanize |
| CSPS A 400 | 0.4 | 68 | 13 | 1.6~3.0 | ≥70 |
| CSPS A/C 600 | 0.6 | 68/125 | 13/25 | 2.0~4.0 | ≥70 |
| CSPS A/C 900 | 0.9 | 68/125 | 13/25 | 2.0~5.0 | ≥70 |
| CSPS A/C 1000 | 1 | 68/125 | 13/25 | 2.0~5.0 | ≥70 |
| CSPS A/C 1250 | 1.25 | 68/125 | 13/25 | 2.0~5.0 | ≥70 |
| CSPS A/C 1500 | 1.5 | 68/125 | 13/25 | 2.0~5.0 | ≥70 |
| CSPS A/C 1600 | 1.6 | 68/125 | 13/25 | 2.0~5.0 | ≥70 |
| CSPS D/E1800 | 1.8 | 150/200 | 50/55 | 3.0~6.0 | ≥84 |
| CSPS D/E2000 | 2.0 | 150/200 | 50/55 | 3.0~6.0 | ≥84 |
| CSPS D/E2500 | 2.5 | 150/200 | 50/55 | 3.0~6.0 | ≥84 |
| CSPS D/E3000 | 3.0 | 150/200 | 50/55 | 3.0~6.0 | ≥84 |
| CSPS D/E3500 | 3.5 | 150/200 | 50/55 | 3.0~6.0 | ≥84 |
| CSPS D/E4000 | 4.0 | 150/200 | 50/55 | 3.0~6.0 | ≥84 |
| CSPS D/E/F4500 | 4.5 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS D/E/F5000 | 5.0 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS D/E/F5500 | 5.5 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS D/E/F6000 | 6.0 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS D/E/F6500 | 6.5 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS D/E/F7000 | 7.0 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS D/E/F7500 | 7.5 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS D/E/F8000 | 8.0 | 300/380/400 | 110/140/150 | 6.0~12.0 | ≥84 |
| CSPS E/F10000 | 10.0 | 380/400 | 140/150 | 6.0~12.0 | ≥84 |
| Arch Culverts | 0.6~40 | 68~400 | 13~150 | 1.6~12.0 | ≥84 |
| Note | 1. The material could be galvanized plates, Q235,Q235B,Q345,or equivalent steel grade. 2.The culvert pipe can produce round, arch, horseshoe, semicircle shape pipe culvert. 3. According to the size of the customers. | ||||
Technical Specifications
ParameterStandard RangeComplianceMaterial Thickness2.0-12 mmASTM A760/A761Corrosion ProtectionG235 galvanized (Z275 optional)ISO 1461Diameter Range150-3600 mmAASHTO M36Design Life50-100 yearsNCHRP 631
Smart Infrastructure Options
- IoT-enabled versions feature:
- Wall thickness sensors (±0.05mm precision)
- Sediment accumulation monitoring
- QR-coded segments for digital twins
Geotechnical Installation Guide
For corrugated metal pipes for culverts and sewers in:
- Expansive Soils: Minimum 1.5 pipe diameter clearance
- High-Vibration Areas: Anti-seismic locking collars
- Coastal Zones: Zinc-aluminum-magnesium coating recommended
Competitive Advantages
- Proven Reliability: 10M+ linear meters installed since 2005
- Technical Support: Free hydraulic modeling with purchase
- Sustainability: 90% recycled steel content with EPD declaration
- Digital Integration: BIM models available in IFC format
